Adjusting the angle of the foot pedals

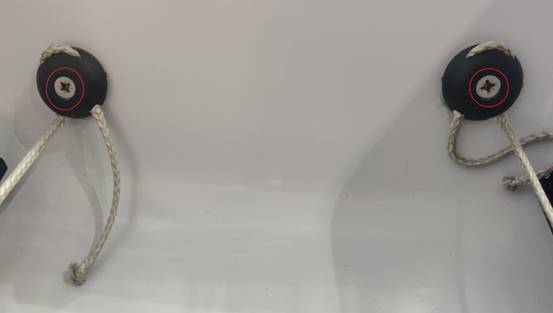

Step 1: Loosen the two screws half a turn.

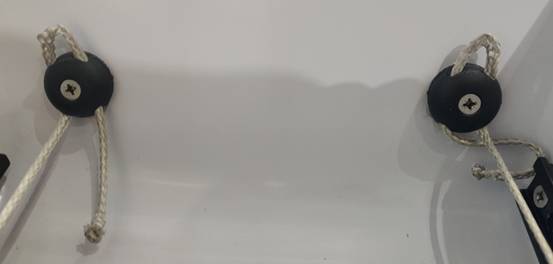

Step 2: Use pliers to pull through the string.

To move the pedals further forward pull through the cut end.

To move the pedals towards the paddler pull through the other end, it might be necessary to get some slack first by pulling a bit of string through the pedal.

Step 3: After pulling the string through on each side check the pedal angle and also if the rudder is centred. Adjust as necessary.

Step 4: Tighten the two screws again.
